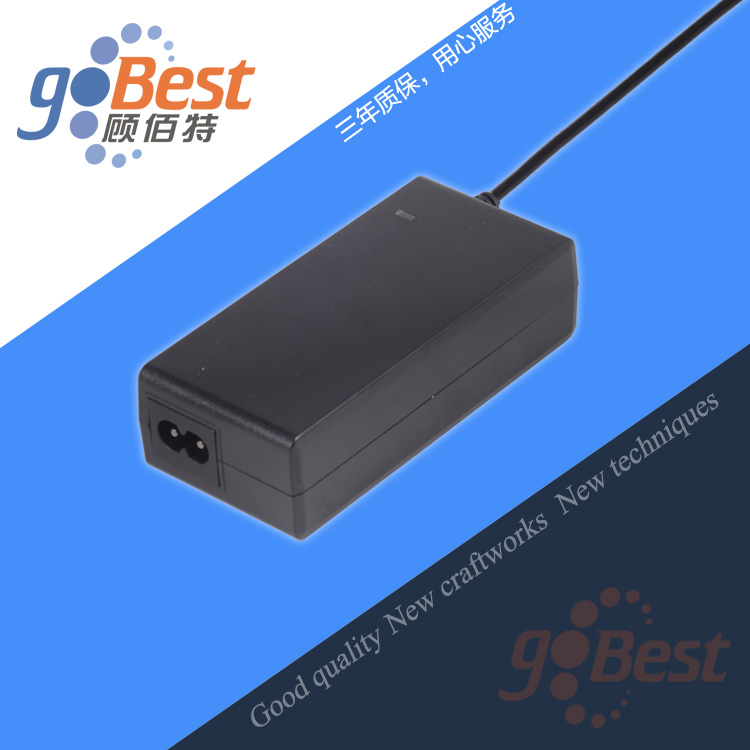

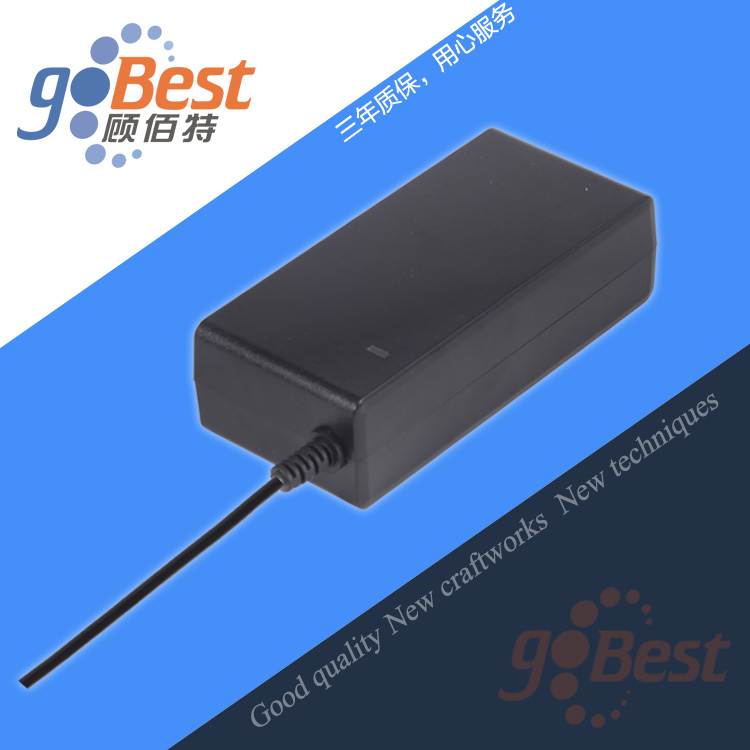

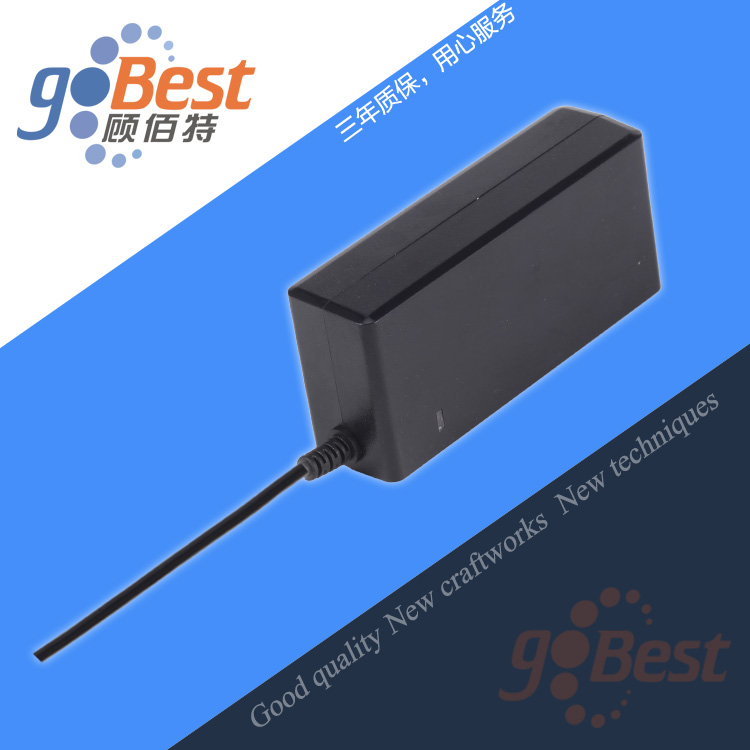

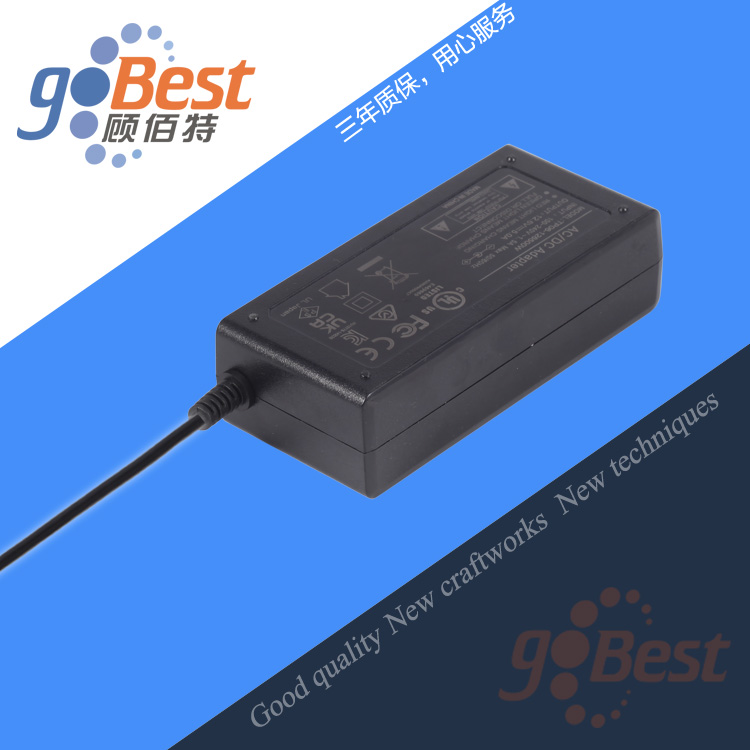

12.6V5A氮化鎵方案鋰電池充電器 65W鋰電池充電器

型號：GBT-1265000-GaN / TP06-126500W

輸入電壓：100-240V

輸出電壓：12.6V

輸出功率：63W

輸出電流：5A

應用行業：潛航器電源，探魚器電源,無人系統設備充電器,水下機器人充電器

在線咨詢

產品參數

1 產品名稱：12.6V 5A鋰電充電器
2 產品型號：GBT-1265000-GaN / TP06-126500W

3 ELECTRICAL CHARACTERISTICS 電氣性能

3.1 AC Input Voltage and Frequency 輸入電壓及頻率

2.1.1 Reliable Input Voltage 可輸入電壓范圍 : AC200-264V

2.1.2 Rated Input Voltage 額定輸入電壓 : AC200-240V

2.1.3 Reliable Input Frequency 可輸入頻率范圍 : 47-63Hz

2.1.4 Rated Input Frequency 額定輸入頻率: 50/60Hz

3.2 Maximum AC Current 最大輸入電流

Input rated voltage,Ouput rated load. Input AC Current 5.0Amps Maximum.

輸入額定電壓,輸出額定負載條件下,最大輸入電流為:5.0Amps。

Input rated voltage,Ouput no load. Input AC Current 0.05Amps Maximum.

輸入額定電壓,輸出空載條件下,最大輸入電流為:0.05Amps。

3.3 Input Inrush Current 最大浪涌(突入)電流

Input 110&230Vac 50/60Hz,Ouput rated load. Maximum cold start inrush Current 80Amps peak. 輸入110&230Vac 50/60Hz,輸出額定負載(冷啟動)條件下,最大浪涌(突入)電流為:80Amps。

3.4 No-load Loss Power 空載功耗

Input Rated Voltage,Output no load. Maximum loss power 0.21Watts MAX.

輸入額定電壓,輸出額定負載,最大空載功耗為:0.21瓦最大。

3.5 Output Voltage 輸出電壓

Parameter

MIN

Type

MAX

Units

Notes

Output Voltage 輸出電壓

5.5

12.6

CV=5.5-

12.6V

CC=4.9-5.1A

Output Current輸出電流

3.6 Output Ripple Voltage 輸出紋波電壓

3.6.1 Output ripple test condition: input rated voltage and ouput rated load.

在額定輸入及輸出的條件下測試輸出紋波電壓。

3.6.2 Peak to peak ripple is measured with an oscilloscope with a bandwidth of 20MHz. 紋波量測時示波器選用20MHz帶寬限制。

3.6.3 Measurement of ripple should include a 0. 1uFceramic capacitor and a 47uF electrolytic capacitor at the input of the measuring oscilloscope.

測試時在輸出端要并聯一顆0.1uF的陶瓷電容和一顆47uF的電解電容。

Input	Output Rated Voltage	Output Current	Output Ripple Voltage
Rated Voltage	CV-5.5-12.6V	5000mA	200mVp-p Max.

3.7 Time Sequence 時序特性

3.7.1 Turn-On Delay Time(TD) 開機輸出延遲時間:

The maximum cold start turn-on delay shall not exceed 3 second at input 230Vac and the rated load condition.

在輸入230Vac,額定負載情況下,最大冷啟動打開的延遲不會超出3秒。

3.7.2 Hold-Up Time(TH) 關機輸出維持時間:

2.7.2.1 The maximum turn-off hold-up time shall be least 10mS at input 115Vac and the rated load condition.

在輸入200Vac及額定負載情況下,關機輸出維持時間不低于10mS。

2.7.2.2 The maximum turn-off hold-up time shall be least 20mS at input 230Vac and the rated load condition.

在輸入230Vac及額定負載情況下,關機輸出維持時間不低于20mS。

3.7.3 Output Rise Time(TR) 輸出上升時間:

Input 200Vac/230Vac and rated load, The rise time shall not exceed 50mS that the output voltage rise from 10% to 90% rated voltage.

在輸入200Vac/230Vac,輸出額定負載條件下,輸出電壓由10%額定電壓上升至90%額定電壓的上升時間不會超過50mS。

3.8 Output Overshoot 輸出過沖

3.8.1 5% Rated Voltage Max. when the power turn on.

當電源開機時,過沖電壓值最大為額定電壓值的5%。

3.8.2 5% Rated Voltage Max. when the power turn off.

當電源關機時,過沖電壓值最大為額定電壓值的5%。

Output Rated Voltage	Overshoot Voltage(V)
Output Rated Voltage	Turn on	Turn off
+12.6V	5%	5%

3.9 Output transient response 輸出瞬態響應

Load output voltage range 負載輸出電壓范圍

Rate Slew

斜率

Load change 負載變化

12.2-12.95V

0.2A/Us

0% to 50%Load and 50% to 100%Load.

Vout ± 5%

0.2A/Us

0% to 100%Load.

3.10 Protection Function 保護功能

3.10.1 Over Voltage Protection 過壓保護

Output voltage exceed the Rated specifications 120%-150% into the protection.

輸出電壓超過額定規格的120%-150% 時進入保護。

3.10.2 Over Current Protection 過流保護

The power supply shall protect itself from any over current condition. and shall be

self-recovery when the fault condition is removed. The maximum output current shall be 100%~ 110% rate output current.

電源在過流情況下可自動保護,當過流情況解除后,可自動恢復正常。最大輸出電流為 100%~110%額定輸出電流。

3.10.3 Short Circuit Protection 短路保護

Shorting of output will not cause power supply to damage, or any safety hazard.

The power supply shall resume normal operation after the short is removed.

輸出短路時電源不會損壞,不會有任何的安全危險,短路解除后電源恢復正常工作。

3.10.4 Input Protection 輸入保護

The power supply has a current fuse to protect itself.

該電源由一顆電流保險絲來達到輸入保護。

3.11 Average Efficiency 平均效率

Inpu230Vac. and 100%,75%,50%,25% Rated Load condition. Average

efficiency (η): 84% Min.

在輸入230Vac,輸出100%,75%,50%,25%額定負載,平均效率 (η): 88% Min。

4 ENVIRONMENTAL REQUIREMENTS 環境要求

4.1 Temperature 溫度

4.1.1 Storage temperature (Non-operating) 存儲溫度(非操作狀態):

-10 to +60 degrees C [-10] 至 [ +60]攝氏度

4.1.2 Operating temperature Limits 操作溫度:

0 to +40 degrees C [0] 至 [ +40]攝氏度

4.2 Relative Humidity 相對濕度

4.2.1 Storage Humidity (Non-operating) 存儲濕度(非操作狀態):

10% to 80% RH (Non-condensing) [10%] 至 [80%],無凝水狀態

4.2.2 Operating Humidity Limits 操作濕度:

0% to 85% RH (Non-condensing) [0%] 至 [85%],無凝水狀態

4.3 The Sea Level Altitude 海拔高度

4.3.1 Storage Altitude 可存儲海拔度(非操作狀態):

0 to +20,000 feet above the sea leve [0] 至 [20,000]英尺

4.3.2 Operating Altitude 可工作海拔度:

0 to +10,000 feet above the sea leve [0] 至 [10,000]英尺

4.4 Cooling Method 冷卻方法

Natural convection or Forced air 自然冷卻或通風冷卻

Note: The power storage time during which the power has never been used should be less than

6 months, otherwise, the rush current tends to malfunction with power started.

說明: 電源存貯時間不得超過半年(在此期間,電源從未使用過),否則開機時的沖擊電流可能損壞電源。

5 Reliability 可靠性

5.1 MTBF: Mean Time Between Failure 平均故障間隔時間

The power supply shall be designed and manufactured to have more than 30,000

operating hours (about 3.5 years for 24-hour-operation a day) of mean time between

failure (MTBF) at 90% of confidence level while operating under the prevailing conditions below.

在如下條件,該電源設計和制造平均故障間隔時間(MTBF)將超過30,000個操作時間(大約操作24小時/每天/3.5年),信心指數為90%。

AC Input Voltage: 200/240Vac

輸入電壓: 200/240Vac

Output Load: 80% of maximum load

輸出負載: 80%最大負載條件

Ambient Temperature: at 25 degrees C Room Temperature

環境溫度: 室溫25攝氏度

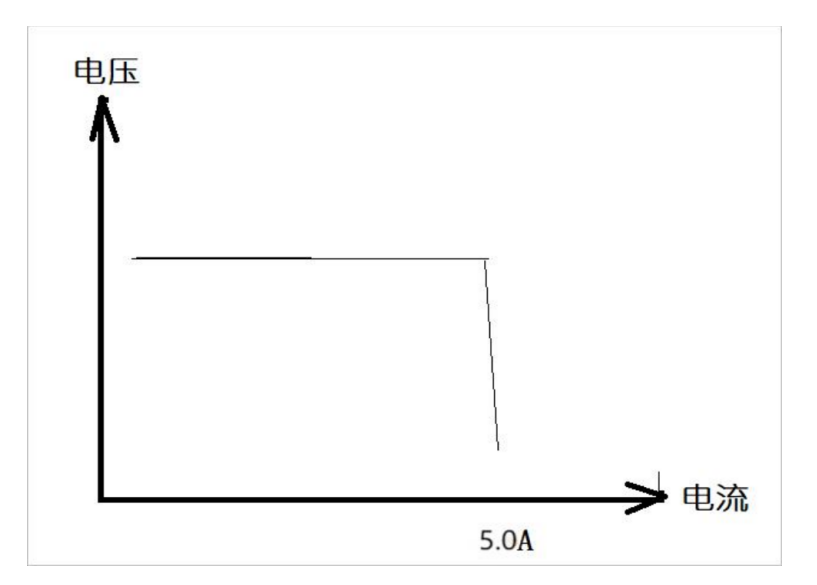

3.12 Charging curve graph 充電曲線圖 … …

3.13 Charging indication status 充電指示狀態 …

紅燈常亮?xí)r，表示正在充電中，綠燈常亮?xí)r表示充電完成.

3.14 Charging-to-full-indicator-switching current 轉燈電流

充電電流在大于0.36A時，綠燈轉紅燈，小于0.36A +10%時，紅燈轉綠燈.

5.2 Insulation Resistance 絕緣阻抗

Test Points 檢測部位	Condition & Specification 條件及規格
Input to Output 輸入-輸出	DC500V 10MΩ min. (at ambient temperature 25 degree C,humidity 70%) DC500V 10MΩ 最小。 (在室溫25攝氏度,濕度70%條件下)。
Input to Case 輸入- 外殼	DC500V 10MΩ min. (at ambient temperature 25 degree C,humidity 70%) DC500V 10MΩ 最小。 (在室溫25攝氏度,濕度70%條件下)。
Output To Case 輸出 - 外殼	Non Isolated

5.3 Hi-Pot 絕緣耐壓

Test Points	檢測部位	Condition & Specification 條件及規格
Input to Output	輸入-輸出	3000Vac 50Hz, 1Minute, ≤10mA.
Input to Case	輸入- 外殼	3000Vac 50Hz, 1Minute, ≤10mA.
Output To Case	輸出 - 外殼	Non Isolated

When AC voltage of 3.0KV is applied, and the voltage applied to the insulation under test is

gradually raised from zero to the prescribed voltage in 1s,and held at that value for 60s between the input and output and between the input and housing, the current sensitivity shall be less than 10mA. After this test, the adapter shall exhibit no electrical and mechanical abnormalities. （AC voltage of 3.6KV,2s and sensitivity current 10mA shall be applied to the product line).

在輸入端對輸出端及輸入端對外殼間施加了3.0KV電壓,并且測試中施加在絕緣上的電壓是在 1S內由0V逐漸上升到規定值,然后保持60S,電流靈敏度設置在10mA。經過以上測試,電源應 不發生電氣及機械上的異常.(注: 在生產線批量生產時以3KV,2S 10mA進行測試)。

5.4 Leakage Current 漏電流

The leakage current shall not exceed 0.25mA for Class Ⅱwhen power supply is operated maximum input voltage and maximum load.

當電源供應器操作在最大輸入及最大負載情況下，其漏電流應小于0.25mA,滿足Class Ⅱ 等級。

SAFETY STANDARD 安全標準

6.1 SAFETY STANDARD 安全標準

EN60335

6.2 ELECTROMAGNETIC COMPATIBILITY (EMC) 電磁兼容性

6.2.1 EMI 電磁干攏

This power supply shall compliance with the following Criterion 本電源將遵照以下標準:

6.2.1.1 Conduction Emission 傳導干擾度

* EN60335, Class B * FCC Part15, Class B

6.2.1.2 Radiated Emission 輻射干擾度

* EN60335, Class B * FCC Part15, Class B
6.2.2 EMS 電磁抗攏

This power supply shall compliance with the following Criterion 本電源將遵照以下標準:

6.2.2.1 ESD 靜電抗擾度

Standard: * IEC61000-4-2

AIR DISCHARGE at 8KV, CONTACT DISCHARGE at 4KV.

6.2.2.2 EFT 脈沖群抗擾度

Standard: * IEC61000-4-4 1KV

6.2.2.3 Surge 雷擊浪涌

Standard: * IEC61000-4-5 1KV
Remarks: EMC-SPECIFICATION test with the Pure resistance as load to test,and we only responsible for the product we supplied.
電磁兼容性測試是以純電阻作為負載測試的，我們只對單品測試負責。

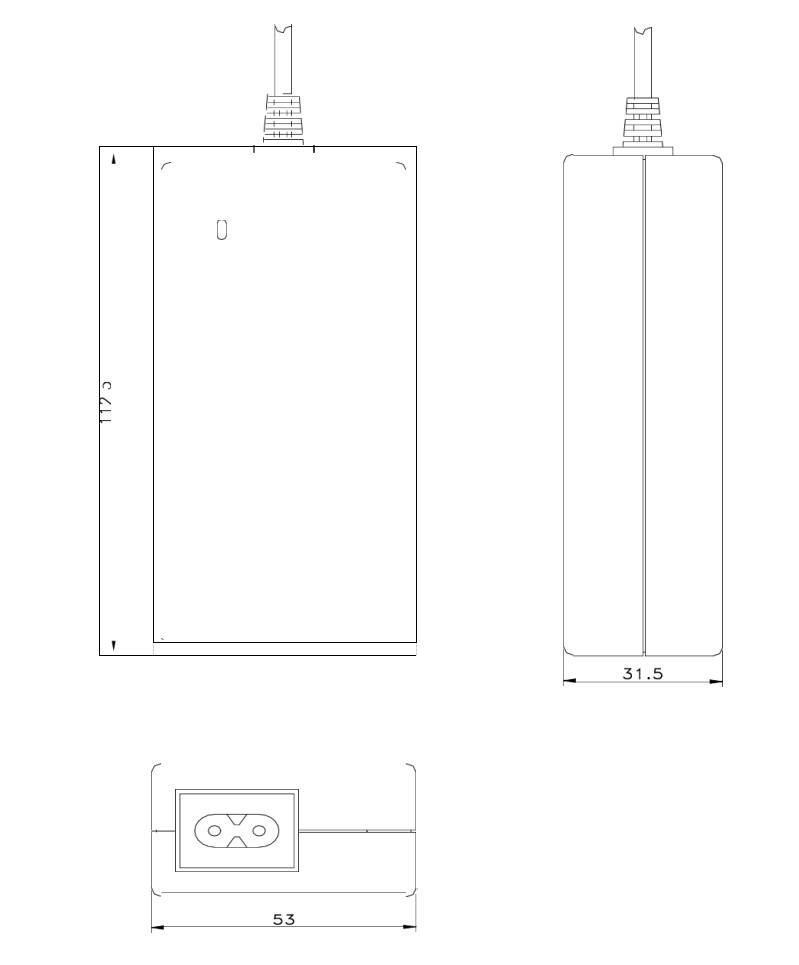

7 MECHANICAL CHARACTERISTICS 機械性能

7.1 Bending Test 搖擺(彎曲)測試

Fixed the main and plug of the adapter,and apply a load of 300g to the other ends. Turn the cable connected to each by ±60 degrees around the connection. Carry out this process 1000 times at a rate of 40 times per minute(a bending of 120 degrees shall be counted as one process) in X

direction. (at:25℃±5℃). As following Figure A. The cable wires shall not be broken after this test. The electrical performance is normal.

以測試冶具固定Plug,吊重300g,左右搖擺±60度,每分鐘搖擺40次，搖擺1000次以上(注:±60度即120度為一個循環,算1次) (溫度:25℃± 5℃). 參如下圖A. 測試后,線材無破裂,且電性功能正常.

7.2 Tensile Strength Test 拉力測試

Fixed either of the plug or the main body with the test tools, then apply a 20N load at the 30Cm

distant from the SR for 60S. As fogire B. No short or open and SR shall be not loosen after tested. 將插頭或充電器主體固定在測試夾具上,距離圍卡30Cm處施加20N的拉力,持續60秒. 如圖B.

測試后,產品無短路,無開路,圍卡無松脫,

7.3 Drop Test 跌落測試

The adapter shall exhibit no abnormality in mechanical or electrical performance when it is dropped three times to hardwood(20mm thickness) from a height of 70cm, with each of
